제품소개

CNC 그라인더

Broach Grinding Machine

  • HBG-3A (Round Type)
  • HBG-3B (Spline Type)

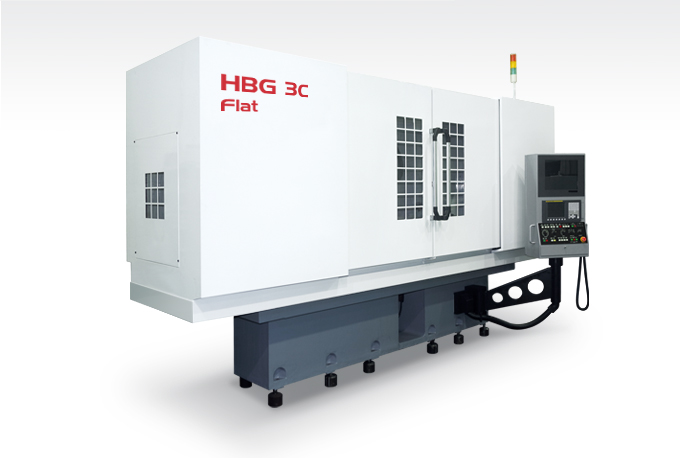

  • HBG-3C (Flat Type)

특장점
  • 견고한 Bed 구조
  • AC 서보모터에 의한 동시 3축 구현
  • 고정도 : X, Y and A Axes (Workhead : NIKKEN rotory table)
    B axis(Dresser : Fanuc Servomotor with Pulse coder)
    Z axis (Heidenhain Scale)
  • Center-Chucking에 의한 Rake face 연삭
  • 강력/고절삭/고정도 연삭 : Spindle Power Max. 5.5kW
  • Ethernet과 자가진행 기능 채택으로 사용자 편의 제고
  • Clean 환경 중시한 Full Cover 디자인
  • CNC 서보모터에 의한 자동 Dressing 기능
  • CNC구동에 의한 공구 파손 및 보정장치
Technical Specification
Description Unit BROACH (Round)
Grinding Capacity Max. Work Piece Length mm 1450
Max. Work Piece Diameter mm Φ120
Max. Length mm 1200
Travel Range X-axis mm 1200
Y-axis mm -
Z-axis mm 300
A-axis Rotation deg. 360° roll over
B-axis Rotation deg. 0~65° MANUAL
C-axis Rotation deg. -
Axis Drives Rapid Traverse Speed X-axis m/min 15
Rapid Traverse Speed Y, Z-axis m/min 8 (Z-axis)
Rapid A-axis Rotation rpm 400
Rapid B-axis Rotation rpm -
X, Y, Z-Leanear Resolution mm 0.0001
C ,A-Radial Resolution deg. 0.0001° (A-axis)
Wheel Spindle Grinding Wheel diameter mm Φ160
Grinding Spindle Speed rpm 12000
Peak Power kW 5.5
Electrical Main Voltage - 220V/60Hz/50Hz
Consumption Power KVA 28
Machine Size Length x Width (LxW) mm 2525x4050
Height mm 2650
Weight kg 4000
Control Technology Controller   FANUC 0i-MD

특장점
  • 견고한 Bed 구조
  • AC 서보모터에 의한 동시 3축 구현
  • High Precision : X, Y and Z Axis (Linear axes) /Pulse Coder (Fanuc 서보모터 구동)
    C axis(Swivel of Wheel head)
    B Axes (Tilting of Wheel Head) / 수동
  • 강력/고절삭/고정도 연삭 : Spindle Power Max. 3.7kW
  • Ethernet과 자가진행 기능 채택으로 사용자 편의 제고
  • Clean 환경 중시한 Full Cover 디자인
  • CNC구동에 의한 공구 파손 및 보정장치
Technical Specification
Description Unit BROACH (Spline)
Grinding Capacity Max. Work Piece Length mm 1450
Max. Work Piece Diameter mm Φ120
Max. Length mm 1200
Travel Range X-axis mm 1200
Y-axis mm 100
Z-axis mm 300
A-axis Rotation deg. 360° roll over
B-axis Rotation deg. 360° roll over
C-axis Rotation deg. -
Axis Drives Rapid Traverse Speed X-axis m/min 15
Rapid Traverse Speed Y, Z-axis m/min 8
Rapid A-axis Rotation rpm 16.6
Rapid B-axis Rotation rpm 3000
X, Y, Z-Leanear Resolution mm 0.0001
C ,A-Radial Resolution deg. 0.0001°
Wheel Spindle Grinding Wheel diameter mm Φ220
Grinding Spindle Speed rpm 6000
Peak Power kW 7.5
Electrical Main Voltage - 220V/60Hz/50Hz
Consumption Power KVA 30
Machine Size Length x Width (LxW) mm 2611x4050
Height mm 2650
Weight kg 3500
Control Technology Controller   FANUC 0i-MD

특장점
  • 견고한 Bed 구조
  • AC 서보모터에 의한 동시 3축 구현
  • High Precision : X, Y and Z Axis (Linear axes) /Pulse Coder (Fanuc 서보모터 구동)
    C axis(Swivel of Wheel head), B Axes (Tilting of Wheel Head) / 수동
  • Rake-face 및 Relief Grinding
  • 고절삭/고정도 연삭 : Spindle Power Max. 3.7kW
  • Ethernet과 자가진행 기능 채택으로 사용자 편의 제고
  • Clean 환경 중시한 Full Cover 디자인
  • CNC구동에 의한 공구 파손 및 보정장치
Technical Specification
Description Unit BROACH (Flat)
Grinding Capacity Max. Work Piece Length mm 1000
Max. Work Piece Diameter mm width 215
Max. Length mm height 70
Travel Range X-axis mm 1200
Y-axis mm 300
Z-axis mm 300
A-axis Rotation deg.
B-axis Rotation deg. ±90 manual
C-axis Rotation deg. ±30 manual
Axis Drives Rapid Traverse Speed X-axis m/min 15
Rapid Traverse Speed Y, Z-axis m/min 8
Rapid A-axis Rotation rpm -
Rapid B-axis Rotation rpm -
X, Y, Z-Leanear Resolution mm 0.0001
C ,A-Radial Resolution deg. -
Wheel Spindle Grinding Wheel diameter mm Φ200
Grinding Spindle Speed rpm 8000
Peak Power kW 5.5
Electrical Main Voltage - 220V/60Hz/50Hz
Consumption Power KVA 28
Machine Size Length x Width (LxW) mm 3800x2630
Height mm 2500
Weight kg 3600
Control Technology Controller   FANUC 0i-MD
